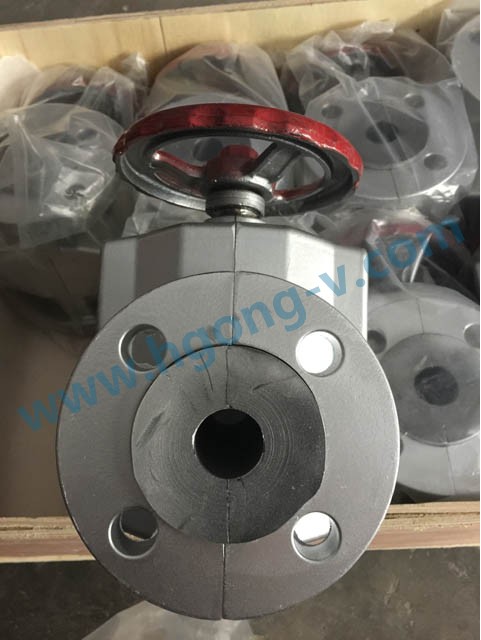

Pinch Valve / Pipe Clamping Valve
Features:
Design & Manufacture: Q/JBGN02, GB 12239-89
Face to Face Dimension: Q/JBGN02, GB12221-89, QY 2000-2
Flanged Dimension: JB78, GB4126, ANSI B16.5, DIN3202, JIS
Inspect & Test: BS 6755, GB/T13927-92
Operation: Handwheel, Pneumatic & Electric
Size Ranges: 1" to 14"NB
Pressure Rating: PN6, PN10, PN16, ANSI 125, ANSI 150.

Standard Materials Construction:
Body/Bonnet: Cast Iron, Ductile Iron, Cast Steel, Stainless Steel and Duplex
Sleeve: Rubber/NBR
Stem: Cast Brass or Carbon Steel
Bar: Carbon Steel
Pressing Stem: Alum. Alloy
Handwheel: Iron & Steel
Bracket: Ductile Iron
