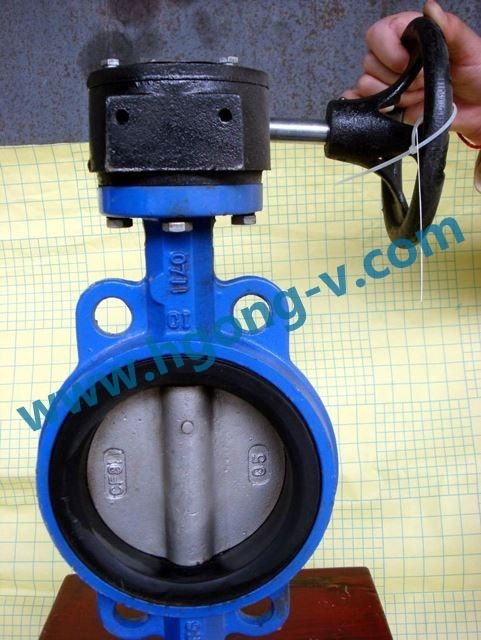

ANSI cast iron wafer butterfly valve

CI wafer butterfly valve

Feature

Wafer or lug body style fit between FF or RF flanges.

PTFE bushing ensure the maximum shaft support and certralized alignment.

360 degree polished disc assures positive on-off

Edge-Boot Seat,it is new type in market .can reduce the torque also fit various flanges,easy to replaceable.

Universal ISO5211 mounting pad,can suit for all kinds of actuators such as handles,gear box,electric actuater and pneumatic actuators

Round with key,square and double "D"of Stem configuration are for you selection

Technical data

Size	DN50-DN300
General Design	API 609
Mounting Pad	ISO 5211
Face to Face	API 609; EN 558 1-20 series
Flange Driling	DIN 2501 PN10/PN16
Inspection and Test	API 598

Specifications

Outline and connecting measurement: price ci ci wafer butterfly valve ci wafer butterfly valve ci wafer butterfly valve ci wafer butterfly valve ci wafer butterfly valve ci wafer butterfly valve ci wafer butterfly valve ci wafer butterfly valve ci wafer butterfly valve

Size	A	B	L	D	E	F	G	K
50	161	80	43	32	12.6	6.7	50	65
65	175	89	46	32	12.6	6.7	50	65
80	181	95	46	32	12.6	6.7	50	65
100	200	114	52	32	15.77	10.3	70	90
125	213	127	56	32	18.92	10.3	70	90
150	226	139	56	32	18.92	10.3	70	90
200	260	175	60	40	22.10	14.3	102	125
250	292	203	68	40	28.45	14.3	102	125
300	337	242	78	40	31.6	14.3	102	125
350	368	267	78	40	31.6	14.3	125	150
400	400	298	102	51.2	33.15	20.6	140	175
450	422	318	114	51.2	38.00	20.6	140	175
500	480	249	127	64.2	41.15	20.6	140	175
600	562	440	154	70.2	50.65	23.2	165	210
700	624	520	163	66	55.00	8-18	254	300
800	672	591	188	66	55.00	8-18	254	300

Material

parts	description	material	specification
1	Body	Cast Iron	A 126 Class B
2	Bushing	PTFE
3	O ring	EPDM
4	Shaft	Stainless steel	AISI 316
5	Disc	Stainless steel	A351 CF8M
6	Seat	PTFE
