Product Description

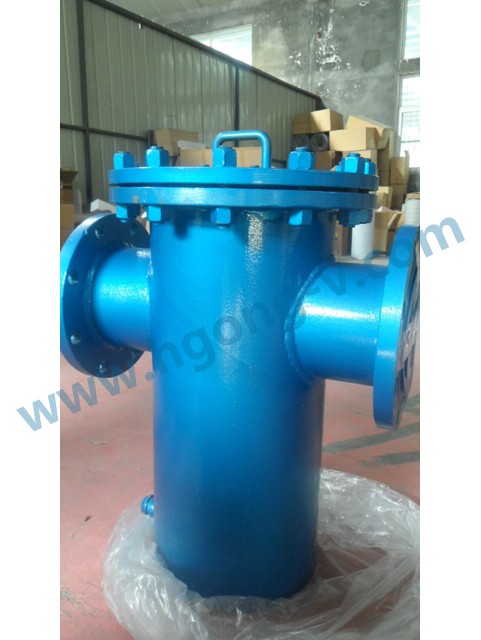

Basket Strainer
 Brief introduction:
The strainer may be used on all types of pipelines to collect granulated foreign substances and contaminants collected. It can improve the clearance in the medium, and prolong the life of valves and other equipments. It is suitable for water, petroleum and steam.
 Main part & material
Body:Carbon Steel
Mesh: stainless steel
 Technical Specification
Nominal diameter:15~500mm
Nominal pressure:0.6-5.0Mpa
We supply cast and welded type basket strainer
1) Sizes: 1/2 - 24"
2) Pressure rating: 150lb, 300lb, 600lb
3) Suitable temperature: -196oC - 600oC
4) Suitable medium: Water, gas, oil, steam etc.
5) Body material: A106/WCB, WCC, WC6, WC9, LCB, LCC, SS304/CF8, SS316/CF8M, 304L/CF3, SS316L/CF3M
6) Screen: Stainless steel (SS304/SS316)
7) End connection: FF, RF, THD, BW
