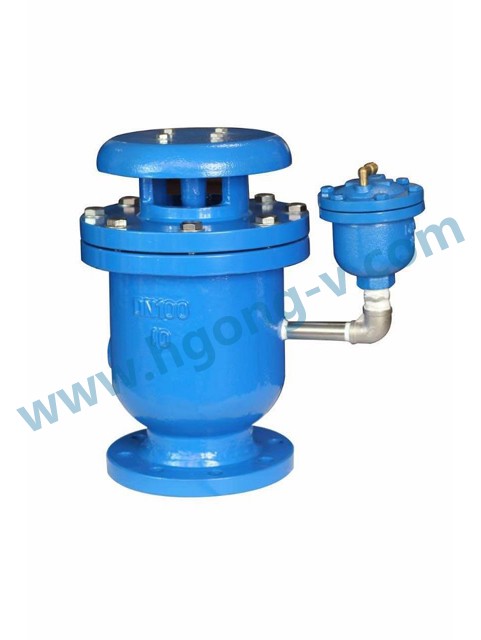

Air discharge valve
Specifications
1) Size: 50mm to 400mm
2) Suitable medium: Water, Steam etc
3) Working pressure: 10kg/cm2
4) Body material: Cast Iron, Carbon steel, stainless steel
5) Ball material: Stainless steel
6) Connection: Flanges

Standards compliance
Design and Manufacture: API 608,API 6D,BS5351
Face to face(end to end): ANSI B16.10,API 6D
Flanged connection:ANSI B16.5
Butt welded end: ANSI B16.25
Test and inspection: API 598,API 6D

Design and Manufacture	DIN3356, BS160, BS5160
Face to Face Dimension	DIN3202 or ANSI B16.10,
Flanged Dimension	DIN2543-2545 or ANSI B16.5
Socketed Ends	ANSI B16.11
Inspection and Test	DIN3230, API 598 or MSS SP-117
