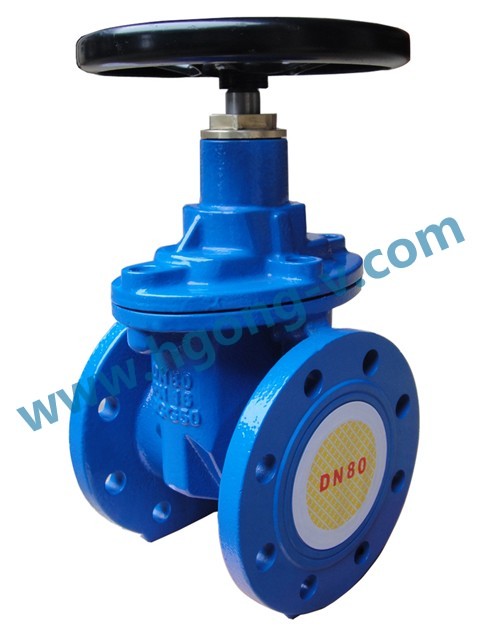

DIN/BS/API CI Resilient-seated  Flanged Gate Valves

 1. BS1563 30" Flanged Gate Valves Details:

 1. Size: DN50-DN600

 2. Working Pressure: PN10/PN16

 3. Flange Dimension: BS1563

 4. Face-to-face Dimension: BS4504/EN1092

 2.  BS1563 30" Flanged Gate Valves Components:



 7. Operation: Hand wheel/Gear Box/Electric/Pneumatic

 3.  BS1563 30" Flanged Gate Valves Design Conditions:

 1. Face to Face is According to BS5163 1986

 2. Flange Drilling is According to BS4504/EN1092

 3. Design Temperature: -10°C~80°C

 4. Fluid: Water/Sea Water/Sanitary Sewage

 4. BS1563 Ductile Iron Gate Valves Test:



Working Pressure	PN10	PN16
Shell Pressure	1.5MPa	2.4MPa
Seat Pressure	1.1MPa	1.76MPa



Design Standard	DIN3352
Face to Face	DIN3202
Flange Ends	DIN2543-2547
Test & Inspection	DIN3230
