Products details:

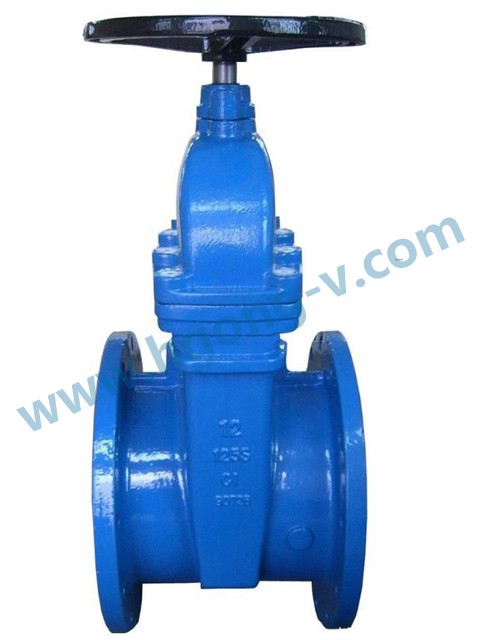

Product name：API/DIN ductile iron handwheel flange gate valve

Product Catalog：gate valve

OnLine Service:

Print this Page

Bookmark this

Skype Online

E-mail Us

PDF Download

【Prev Products】

【Next Products】

Product Details	Online Inquiry

DIN CIResilient-seated Flanged Gate Valves

1. BS1563 30" Flanged Gate Valves Details:

1. Size: DN50-DN600

2. Working Pressure: PN10/PN16

3. Flange Dimension: BS1563

4. Face-to-face Dimension: BS4504/EN1092

2. BS1563 30" Flanged Gate Valves Components:

7. Operation: Hand wheel/Gear Box/Electric/Pneumatic

3. BS1563 30" Flanged Gate Valves Design Conditions:

1. Face to Face is According to BS5163 1986

2. Flange Drilling is According to BS4504/EN1092

3. Design Temperature: -10°C~80°C

4. Fluid: Water/Sea Water/Sanitary Sewage

4. BS1563 Ductile Iron Gate Valves Test:

Working Pressure	PN10	PN16
Shell Pressure	1.5MPa	2.4MPa
Seat Pressure	1.1MPa	1.76MPa

5. BS1563 30" Flanged Gate Valves Dimensions

DN	50	65	80	100	125	150	200	250	300	350	400	500	600
L	178	190	203	229	254	267	292	330	356	381	406	457	508
H	265	297	313	359	451	451	544	621	730	880	990	1120	1370
D(PN10)	165	185	200	220	250	285	340	395	445	505	565	670	780
D(PN16)	165	185	200	220	250	285	340	405	460	520	580	715	840
C	178	178	203	254	305	356	405	457	-	-	-	-	-
