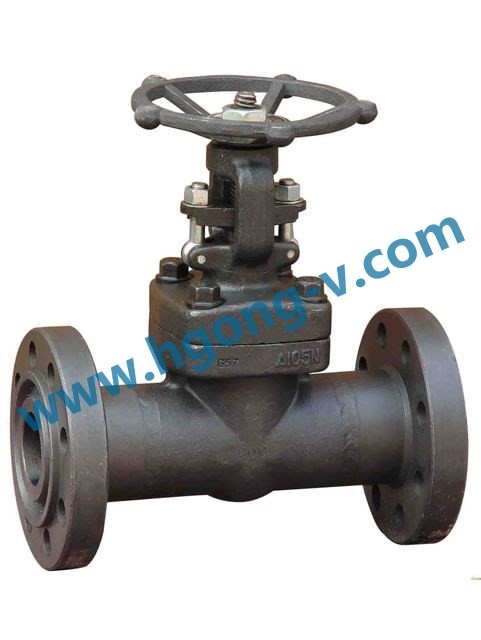

Product name：API forged steel Flanged Gate Valve

Product Catalog：forged steel valve

OnLine Service:

Print this Page

Bookmark this

Skype Online

E-mail Us

PDF Download

【Prev Products】

【Next Products】

Product Details	Online Inquiry

Flanged End Gate Valve

Standard Material Specifications

NO.	Part Name	CS to ASTM	AS to ASTM	SS to ASTM
NO.	Part Name	Type A105	Type F22	Type F304(L)	Type F316(L)
1	Body	A105	A182 F22	A182 F304(L)	A182 F316(L)
2	Seat Ring	A276 420	A276 304	A276 304(L)	A276 316(L)
3	Wedge	A276 410 & 430	A182 F304	A182 F304(L)	A182 F316(L)
4	Stem	A182 F6	A182 F304	A182 F304(L)	A182 F316(L)
5	Gasket	Corrugated SS + graphite		SS + PTFE
6	Bonnet	A105	A182 F22	A182 F304(L)	A182 F316(L)
7	Bonnet Bolt	A193 B7	A193 B16	A193 B8	A193 B8M
8	Pin	A276 420		A276 304
9	Gland	A276 410		A182 F304(L)	A182 F316(L)
10	Gland Eyebolt	A193 B7	A193 B16	A193 B8	A193 B8M
11	Gland Flange	A105	A182 F11	A182 F304(L)	A182 F316(L)
12	Gland Nut	A193 2H	A194 4	A194 8	A194 8M
13	Yoke Nut	A276 410
14	H.W.Lock Nut	A194 2H	A194 4	A194 8	A194 8M
15	Nameplate	SS
16	Handwheel	A197
17	Bearing Gasket	A473 431
18	Stem Packing	Flexible Graphite		PTFE
Suitable Medium		W.O.G.etc	W.O.G.etc	HNO3CH3OOH etc
Suitable Temperature		-29~425	-29~550	-29~180

Note: Other materials are available upon request.

Dimensions (mm) and Weights (Kg) 150Lb~600Lb

NPS			1/2"	3/4"	1"	1/4"	1-1/2"	2"
L(RF)L1(BW)	150		108	117	127	140	165	203
	300		140	152	165	178	190	216
	600		165	190	216	229	241	292
H(OPEN)	150,300		158	169	197	236	246	283
H(OPEN)	600		169	197	236	246	283	320
W			100	100	125	160	160	180
Weights	150	RF	4.5	5.2	8.2	11.5	12.5	20.3
	150	BW	2.8	3.3	5.4	7.1	8.2	12.5
	300	RF	4.8	6.2	9.3	14	15.5	23.4
	300	BW	3.5	4.4	6.8	8.1	9.2	15.4
	600	RF	5.9	7.4	10.4	16.2	17.5	28.3
	600	BW	4.5	5.1	8.2	10.5	12.4	20.1

Dimensions (mm) and Weights (Kg) 900Lb~1500Lb

NPS		1/2"	3/4"	1"	1/4"	1-1/2"	2"
L(RTJ)	900,1500	216	229	254	279	305	371
L1(BW)	900,1500	216	229	254	279	305	368
H(OPEN)		197	197	236	246	283	330
W		125	125	160	160	180	200
Weights	RTJ	7.2	11.5	15.6	16.2	22.6	32.8
Weights	BW	5.2	9.3	12.4	13.8	18.9	27.5
