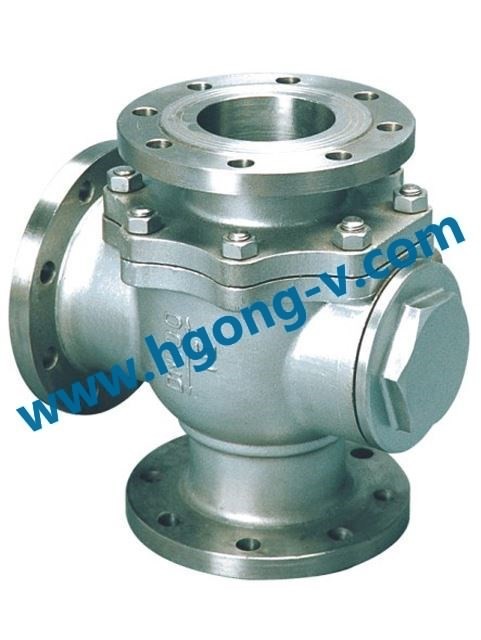

API stainless steel three way ball valve

Standards compliance

Design and Manufacture: API 608,API 6D,BS5351

Face to face(end to end): ANSI B16.10,API 6D

Flanged connection:2"~24" to ANSI B16.5

Fire-safe: API 607,API 6FA

Butt welded end: ANSI B16.25

Test and inspection: API 598,API 6D

Usage
Way ball valve with T-shaped and L-shaped. T-shaped pipe to make three orthogonal interconnected and cut off the third channel, divert traffic, merging effect. L-shaped connecting only two orthogonal channels, can not maintain a third pipe connected with each other only as a distribution function.

Features
1, three-valve integrated in the structure of a structure, 4 seat sealing surface type, flange connection, high reliability, design and implementation of the lightweight.
2, three core sub-T-ball and L-shaped, long life, flow capacity, small resistance.
3, valve-action points by single and double acting two types, single-action feature is that once the power source fails, the ball will be in the state of the control system requirements.

Specifications

Material	WCB			CF8
Pressure(Mpa)	1.6	2.5	4.0	1.6	2.5	4.0
Temperature(oC)	<150
Medium	Water, steam, oil, etc.			Weak corrosive media
Body	Carbon steel castings			Chrome-nickel-titanium steel casting
Ball, Stem	2Cr13			Chrome-nickel stainless steel titanium
Seat	RPTFE
Packing	PTFE

Main connection dimensions

DN	L	D	D1	D2	b	Z-d	H	W
15	108	95	65	45	14	414	95	140
20	117	105	75	55	14	414	105	160
25	127	115	85	65	14	414	113	180
32	140	135	100	78	16	418	135	250
40	165	145	110	85	16	418	142	300
50	178	160	125	100	16	418	154	350
65	191	180	145	120	18	418	175	350
80	203	195	160	135	20	818	190	400
100	229	215	180	155	20	818	225	500
125	356	245	210	185	22	818	245	600
150	394	280	240	210	24	823	265	800
200	457	335	295	265	26	1223	305	800
250	533	405	355	320	30	1225	370	1300
