Product Description

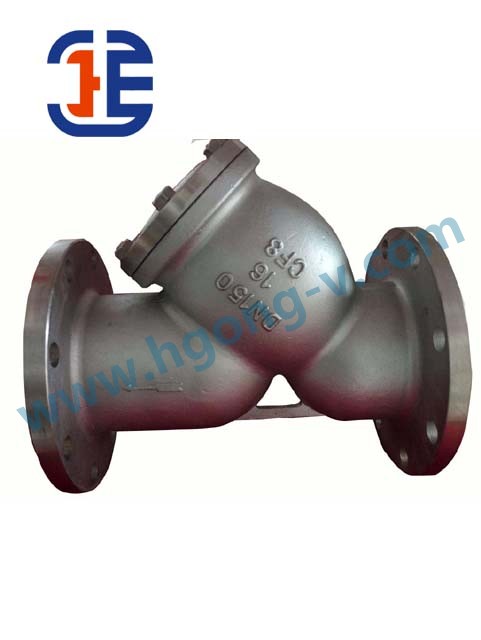

stainless steel Y Type Strainer (YG41H)

Technical Specifications:

Design and Manufacture: DIN3356, BS160, BS5160

Face to Face Dimension: DIN3202 or ANSI B16.10,

Flanged Dimension: DIN2543-2545 or ANSI B16.5

Socketed Ends to ANSI B16.11

Inspection and Test: DIN3230, API 598 or MSS SP-117

Size Range: 2" to 12" (DN50~DN300)

Pressure Ratings: Class 150LB, Class 300LB (PN16~PN64)

Materials Available in: CS-G25, CF8, CF8M, CF3, CF3M
