Applicable Standards:
Design & Manufacture according to :API 6D
Face to Face according to :ASME B16.10
Flange Dimensions according to :ASME B16.5
Pressure & Temperature according to :ASME B16.34
Test & Inspection according to :API 6D / API 598
Visual Inspection according to :MSS SP-55
Marking according to :MSS SP-25

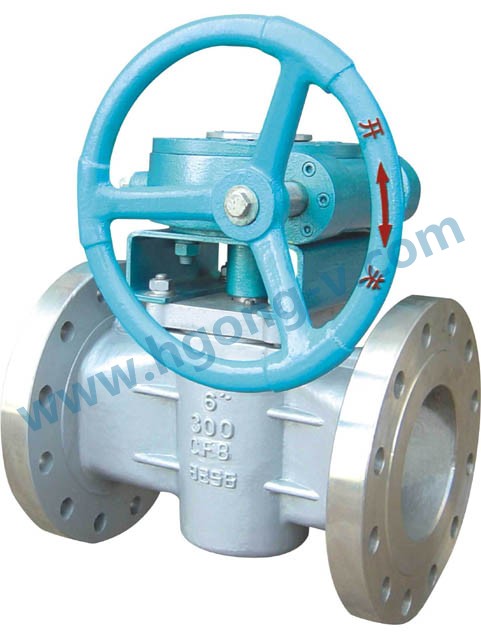

Sleeve Type Soft Sealing Plug Valves (X43F)
Standards compliance:
Design and Manufacture: API 599, API 6D
Face to face(end to end): ANSI B 16.10
Flanged connection: ANSI B16.5
Test and inspection: API 598, API 6D
Main structural features:
Bolt cover, plug 90 degree around.
Its sealing is realized by the sealing face around the sleeve. It has unique 360 degree metal edge for protection and fixing of the sleeve. There is no cavity in the valve for accumulation of medium. Metal edge provides the function of self-cleaning when the plug is rotated, applicable to the operation condition thatis glutinous and apt to smudge. Double direction.
Material Option:
|
|
A216 Gr.WCB , WCC , WCA , etc |
|
Low temperature steel |
A352 Gr.LCB , LCC , LC1 , etc |
|
Cr-Mo steel |
A217 Gr.WC6 , WC9 , C5 , C12 , C12A , etc |
|
Stainless Steel |
A351 Gr.CF8 , CF8M , CF3 , CF3M , CF8C , etc |
|
Alloy steel |
CN7M alloy 20 , CN3M alloy 20 modified , CT15C , etc |
|
Super duplex |
A995 Gr.4A , 5A , CE8MN , CD6MN , CD3MN , etc |
|
Aluminum bronze |
B148 C95500 , C95600 , C95800 , etc |
|
Monel |
M30C , M35-1 , CZ100 , etc |
|
Inconel |
CY40 inconel 600 , etc |
|
Hastelloy |
CW2m Hastelly C4 , N12MV Hastelloy B , CW12MW Hastelloy C276 , etc |
|
Incoloy |
CU5MCuC Incoloy 825 , CW6MC Incoloy 625 , etc |
