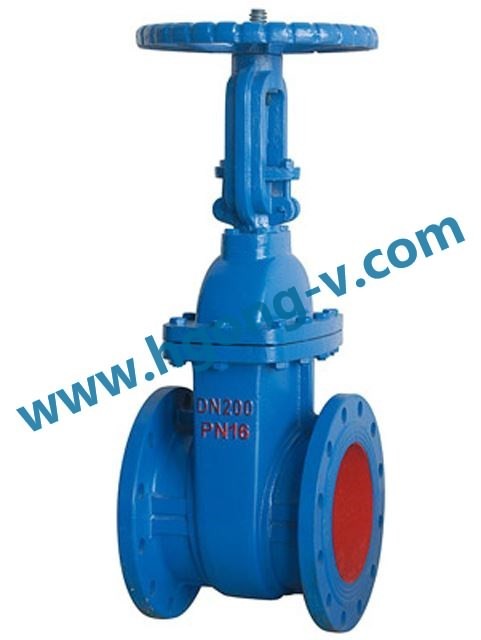

DIN F4 RISING STEM GATE VALVE
Technical specificastion
|
Structural Formation |
BB-BG-OS & Y |
|
Driving Manner |
Hand-Operated |
|
Electric-Actuated |
|
|
Design Standard |
DIN3352 |
|
Face to Face |
DIN3202 |
|
Flange Ends |
DIN2543-2547 |
|
Test & Inspection |
DIN3230 |
Notes:The size of serial,valve connecting flange can be design according to customers reguirment.
Products performance specification
|
Nominal Pressure (Mpa) |
Shell Test(Mpa) |
Sealing Test(Mpa) |
Suitable Temp(oC) |
Suitable Medium |
|
1.6 |
2.4 |
1.76 |
-110~600 oC |
Water Oil & Gas |
|
2.5 |
3.75 |
2.75 |
||
|
4.0 |
6.0 |
4.4 |
||
|
6.4 |
9.6 |
7.04 |
Main Dimensions unit:mm
|
Pressure (Mpa) |
PN 1.6 Mpa |
|||||||||||||
|
Size |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
600 |
|
L |
150 |
170 |
180 |
190 |
200 |
210 |
230 |
250 |
270 |
290 |
310 |
330 |
350 |
390 |
|
H |
305 |
354 |
402 |
437 |
496 |
541 |
699 |
815 |
914 |
1189 |
1350 |
1680 |
1907 |
2050 |
|
W |
200 |
200 |
250 |
250 |
300 |
350 |
400 |
400 |
450 |
450 |
500 |
500 |
600 |
600 |
|
Weight(kg) |
15 |
17 |
23 |
43 |
51 |
68 |
105 |
176 |
285 |
356 |
568 |
702 |
895 |
1045 |
