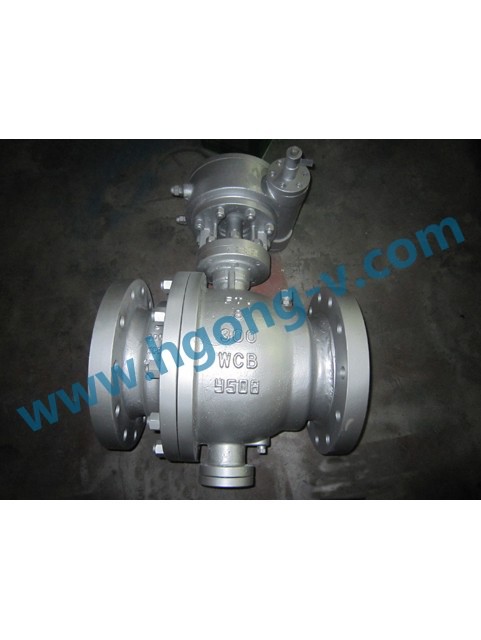

DIN/API Worm gear trunnion Mounted ball valve

Two-piece Body,Floating Ball,Buint-in ISO5211 direct mounting pad

Full silicasol technology

Full or Reduced bore,Blowout Proof Stem

Fire safe and Anti static

Anti-static devices for ball-stem body

Double stem sealing to comply with TA-LUFT requirements

Pre-Load 2 belleville washer to self-adjust packing

Stainless steel ball

CF8(304) CF3(304L) CF8M(316) CF3M(316L)

Standards compliance

Design and Manufacture: API 608,ASME B16.34

Face to face(end to end): ASME B16.10

Flanged connection:ASME B16.5

Fire-safe: API 607,4th 1993

Test and inspection: API 598,API 6D

Main Part Materials :

NO	part name	materials
NO	part name	GB	ASTM
1	body	WCB	A2116-WCB
2	Seal	PTFE	PTFE
3	ball	1C18Ni9Ti	SS304
4	nut	35	A194-2H
5	Stud	35CrMoA	A193-B7
6	stone	WCB	A216-WCB
7	gasket	GRAPHITE + stainless steel	B12.10-304F/.G
8	packing	PTFE	PTFE
9	stuffing box gland	WCB	A2116-WCB
10	Localization piece	25	A105
11	distance ring	65Mn	AISI 1066
12	handwel	K33	A47-667 Gr.32510
13	Stem	1Cr33	A276-410
14	screw	35	A193-B7
15	Stops pushes the filling piece	PTFE	PTFE

Nominal diameter	15	20	25	40	50	65	80	100	125	150	200
d1	13	19	25	38	64	64	76	102	127	152	203
L	108	117	127	165	191	191	203	229	356	394	457
H	59	63	75	95	142	142	152	178	252	272	342
W	130	130	160	230	400	400	400	650	1050	1050	1410
Wt(kg)	2.5	3	5	7	15	19	19	33	58	93	160

Prime out-form dimensions :
