Products details:

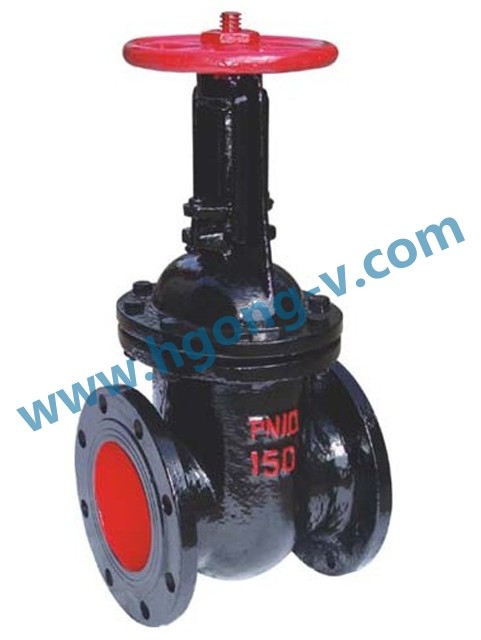

Product name:DIN cast iron rise stem matel seat gate valve
Product Catalog:gate valve
Product Details Online Inquiry

DIN/BS/API cast iron Resilient-seated  Flanged Gate Valves

 1. BS1563 30" Flanged Gate Valves Details:

 1. Size: DN50-DN600

 2. Working Pressure: PN10/PN16

 3. Flange Dimension: BS1563

 4. Face-to-face Dimension: BS4504/EN1092

 2.  BS1563 30" Flanged Gate Valves Components:



 7. Operation: Hand wheel/Gear Box/Electric/Pneumatic

 3.  BS1563 30" Flanged Gate Valves Design Conditions:

 1. Face to Face is According to BS5163 1986

 2. Flange Drilling is According to BS4504/EN1092

 3. Design Temperature: -10°C~80°C

 4. Fluid: Water/Sea Water/Sanitary Sewage

 4. BS1563 Ductile Iron Gate Valves Test:



Working Pressure

PN10

PN16

Shell Pressure

1.5MPa

2.4MPa

Seat Pressure

1.1MPa

1.76MPa




Design Standard
 DIN3352
 Face to Face  DIN3202
 Flange Ends  DIN2543-2547
 Test & Inspection  DIN3230
