Product name：DIN stainless steel lug type knife gate valve

Product Catalog：knife gate valve

OnLine Service:

Print this Page

Bookmark this

Skype Online

E-mail Us

PDF Download

【Prev Products】

【Next Products】

Product Details	Online Inquiry

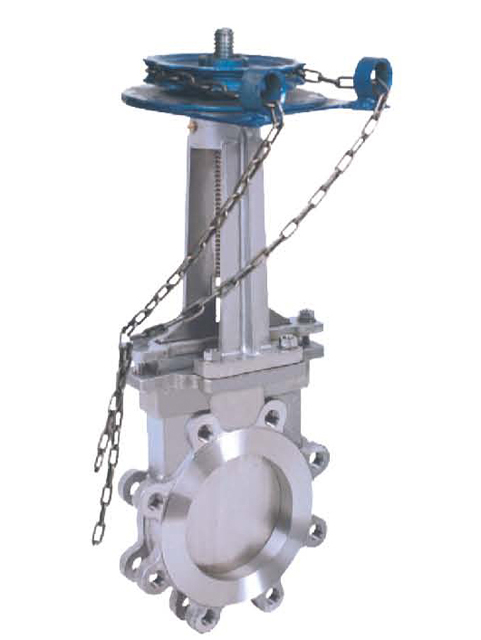

Chain wheel knife gate valve

Nominal diameters and coupling sizes

Nominal pressure MPa	Nominal diameter DN	L ength	Flange diameter Bolt	Central round diameter	Coupled protruding part diameter	H	N-M	Nominal pressure MPa	Nominal diameter DN	L ength	Flange diameter Bolt	Central round diameter	Coupled protruding part diameter	H	N-M
0.6	50	50	140	110	90	285	4-M12	1.0	350	90	500	460	428	885	16-M20
	65	50	160	130	110	300	4-M12		400	100	565	515	482	990	16-M22
	80	50	185	150	125	315	4-M16		450	120	615	565	532	1100	20-M22
	100	50	205	170	145	365	4-M16		500	130	670	620	585	1200	20-M22
	125	50	235	200	175	400	8-M16		600	130	780	725	685	1450	20-M27
	150	70	260	225	200	475	8-M16		700	160	895	840	800	1700	24-M30
	200	70	315	280	255	540	8-M16		800	160	1010	950	905	2000	24-M30
	250	70	370	335	310	630	12-M16		900	160	1110	1050	1005	2300	28-M30
	300	80	435	395	362	780	12-M20		1000	160	1220	1160	1115	2500	28-M30
	350	90	485	445	412	885	12-M20		1200	200	1450	1380	1325	2800	32-M36
	400	100	535	495	462	990	16-M20	1.6	50	50	160	125	100	285	4-M16
	450	120	590	550	518	1100	16-M20		65	50	180	145	120	300	4-M16
	500	130	640	600	568	1200	16-M20		80	50	195	160	135	315	8-M16
	600	130	755	705	670	1450	20-M22		100	50	215	180	155	365	8-M16
	600	130	755	705	670	1450	20-M22		125	50	245	210	185	400	8-M16
	700	160	860	810	775	1700	24-M22		150	70	280	240	210	475	8-M20
	800	160	975	920	880	2000	24-M27		200	70	335	295	265	540	12-M20
	900	160	1075	1020	980	2300	24-M27		250	70	405	355	320	630	12-M22
	1000	160	1175	1120	1080	2500	28-M27		300	80	460	410	375	780	12-M22
	1200	200	1400	1340	1295	2800	32-M30		350	90	520	470	435	885	16-M22
1.O	50	50	160	125	100	285	4-M16		400	100	580	525	485	990	16-M27
	65	50	180	145	120	300	4-M16		450	120	640	585	545	1100	20-M27
	80	50	195	160	135	315	4-M16		500	130	705	650	608	1200	20-M30
	100	50	215	180	155	365	8-M16		600	130	840	770	718	1450	20-M36
	125	50	245	210	185	400	8-M16		700	160	910	840	788	1700	24-M36
	150	70	280	240	210	475	8-M20		800	160	1020	950	898	2000	24-M36
	200	70	335	295	265	540	8-M20		900	160	1120	1050	998	2 300	28-M36
	250	70	390	350	320	6 30	12-M20		1000	160	1255	1170	1110	2500	28-M42
	300	80	440	400	368	780	12-M20		1200	200	1485	1390	1325	2800	32-M48
