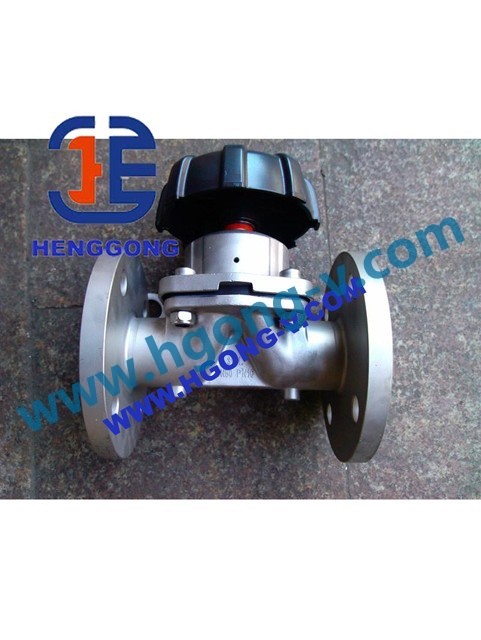

Product name：DIN Stainless steel wire type diaphragm valve

Product Catalog：diaphragm valve

OnLine Service:

Print this Page

Bookmark this

Skype Online

E-mail Us

PDF Download

【Prev Products】

【Next Products】

Product Details	Online Inquiry

API Diaphragm valve/DIN diaphragm valve

Norminal bore		Standard dimension							Refer dimension
DN(mm)	NPS(inch)	L	D	D1	D2	f	b	Z-фd	d0	H	H1	WT(kg)
DN(mm)	NPS(inch)	PN0.6MPa / PN1.0MPa
15	1/2	125	95	65	45	2	14	4-ф14	100	105	110	3.5
20	3/4	135	105	75	55	2	16	4-ф14	100	115	125	4
25	1	145	115	85	65	2	16	4-ф14	120	120	135	5.5
32	11/4	160	135	100	78	2	18	4-ф18	120	125	150	8
40	11/2	180	145	110	85	3	18	4-ф18	140	135	175	11
50	2	210	160	125	100	3	20	4-ф18	140	155	195	14
65	21/2	250	180	145	120	3	20	4-ф18	200	170	200	23
80	3	300	195	160	135	3	22	4-ф18	200	200	255	29
100	4	350	215	180	155	3	22	8-ф18	280	270	325	46
125	5	400	245	210	185	3	24	8-ф18	320	335	405	70
150	6	460	280	240	210	3	24	8-ф23	320	370	450	95
200	8	570	335	295	265	3	26	8-ф23	400	480	600	170
250	10	680	390	350	320	3	28	12-ф23	500	545	620	270
300	12	790	435	395	362	4	24	12-ф23	500	585	680	320
PN1.6MPa
15	1/2	130	95	65	45	2	14	4-ф14	120	110	115	4
20	3/4	150	105	75	55	2	16	4-ф14	120	120	130	5
25	1	160	115	85	65	2	16	4-ф14	140	125	140	6
32	11/4	180	135	100	78	2	18	4-ф18	140	130	155	9
40	11/2	200	145	110	85	3	18	4-ф18	160	140	180	12
50	2	230	160	125	100	3	20	4-ф18	160	160	200	15
65	21/2	290	180	145	120	3	20	4-ф18	200	175	205	24
80	3	310	195	160	135	3	22	8-ф18	200	205	260	30
100	4	350	215	180	155	3	24	8-ф18	280	275	330	48
125	5	400	245	210	185	3	26	8-ф18	320	340	410	75
150	6	480	280	240	210	3	28	8-ф23	320	375	460	105
200	8	600	335	295	265	3	30	12-ф23	400	485	605	182
250	10	730	405	355	320	3	32	12-ф25	500	550	625	295
300	12	850	460	410	375	4	34	12-ф25	500	590	685	345
