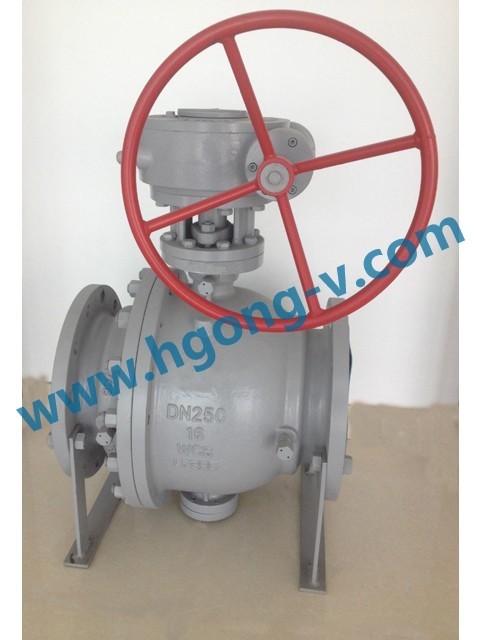

DIN worm gear Caron steel trunnion flange ball valve

Cast Ball Valve

Bolted bonnet,Two-piece Body,

Full or Reduced bore,Blowout Proof Stem

Fire safe and Anti static

Stainless steel ball

ASTM A216 WCB,A351 CF8,A351 CF8M,

A351 CF3,A351 CF3M,A351 CN7M

Standards compliance

Design and Manufacture: API 608,API 6D,BS5351

Face to face(end to end): ANSI B16.10,API 6D

Flanged connection:2"~24" to ANSI B16.5

Fire-safe: API 607,API 6FA

Butt welded end: ANSI B16.25

Test and inspection: API 598,API 6D

Major parts materials

NO	Part name	Material	NO	Part name	Material
1	Bonnet	A216-WCB	9	Gasket	PTFE
2	Nut	A194-2H	10	Packing	Graphite
3	Gasket	Graphite	11	Gland	A216-WCB
4	Bolt	A193-B7	12	Screw nail	A194-2H
5	Body	A216-WCB	13	Locating piece	Carban steel
6	Seat	PTFE	14	Ring	AISI 1566
7	Ball	A105	15	Wrench	A47-667
8	Stem	A276-410
