Products details:

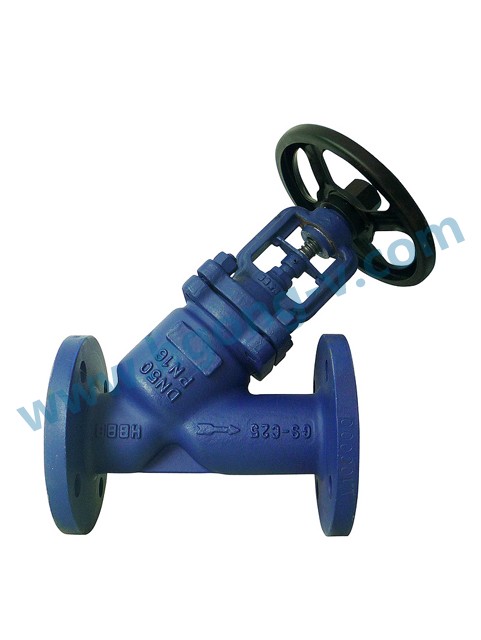

Product name：DIN Y type bellow flange globe valve

Product Catalog：globe valve

OnLine Service:

Print this Page

Bookmark this

Skype Online

E-mail Us

PDF Download

【Prev Products】

【Next Products】

Product Details	Online Inquiry

JIS API DIN Globe valve

Main characteristic：

Mainly uses for to put through or to interrupt in the pipeline the medium, does not need to adjust the current capacity generally, but the suitable pressure scope is very broad。

technique speeification ：

Main parts materials suitabled the project situation	Body ，Bonnet ，Disc	WCB	ZG1Cr18Ni9Ti	ZG1Cr18Ni9Ti
	Sealing face	H(Cr13)or Y(hard metal )	W( noumenon )or Y（ Kentanium ）
	valve spindle and Contents	1Cr13
	packing	flexible graphite
	shim	height diameter graphite
	Suitable medium	Water 、 oil 、 steam	Nitric acid etc Corrosion medium	Nitric acid etc Corrosion medium
	Suitable temperature	<=425℃	<=200℃

material ：

Nominal Pressure	test pressure
	Casing	Seal liquid	Low Pressure Seal （Gas）	Suitable medium	Working temperature
1.6	2.4	1.76	0.6	Water 、 oil 、 steam	<＝425
