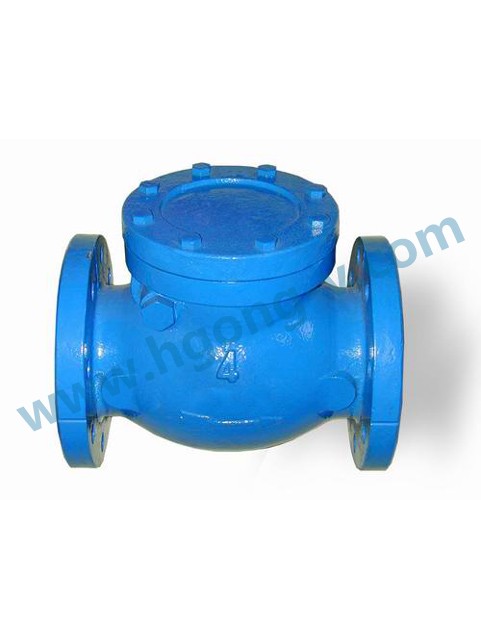

SWING CHECK VALVE

Bolted cover,swing type disc

Threaded or welded seat ring

ASTM A216 WCB,A217 WC6,A351CF8,A351CF8M,

A351 CF3,A351 CF3M,A351 CN7M

Standards compliance

Design and Manufacture: ANSI B16.34, API6D, BS1868

Face to face(end to end): ANSI B16.10, API6D

Flanged connection: 2"~24" to ANSI B16.5

22", 26"~36 to MSS-SP-44

to API605 on request

Butt welded end: ANSI B16.25

Test and inspection: API598, API6D

Standard Material Specifications

Materials list
NO.	Part name	Material
12	Disc nut	Carbon steel/stainless steel
11	Washer	Carbon steel/stainless steel
10	Hinge pin	Carbon steel/stainless steel
09	Seat ring	CS+SS/SS/SS+STL(see body materials)
08	Disn	CS+SS/SS/SS+STL(see body materials)
