Products details:

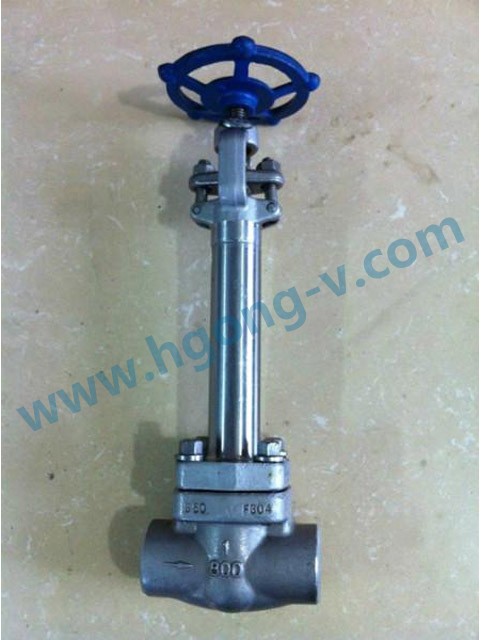

Product name：API forged Stainless steel bonnet weld gate valve

Product Catalog：forged steel valve

OnLine Service:

Print this Page

Bookmark this

Skype Online

E-mail Us

PDF Download

【Prev Products】

【Next Products】

Product Details	Online Inquiry

Product Description

Features:
Valve cover screwl connection
Spring loaded to ensure that even in the low-pressure sealingl performance when the same good

Application criteria:
Design: API602/ASMEl 16.34/BS 5352
Pressure Test: API 598L
Tag: MSS SP25L
SW Socketl welding ends according to ASME B16.11
BW butt end by ASME B16.25L
NPTl threaded connectors according to ASME B1.20.1
Pressure rating:
CLASSl 800
CLASS 1500L
CLASS 2500L
Optional Materials:
Carbon Steel: A105, LF2l
Stainless Steel: F304, F304L, F316, l F316L
Duplex: F51, F55L
Alloy: F1, F5, F5A, F9, F11, F22L

Standard Material Specifications

NO.	Part Name	CS to ASTM	AS to ASTM	SS to ASTM
NO.	Part Name	Type A105	Type F22	Type F304(L)	Type F316(L)
1	Body	A105	A182 F22	A182 F304(L)	A182 F316(L)
2	Piston Disc	A276 410	A276 304	A276 304(L)	A276 316(L)
3	Gasket	Corrugated SS + graphite		SS + PTFE
4	Bonnet	A105	A182 F22	A182 F304 L	A182 F316(L)
5	Nameplate	SS
6	Bolt	A193 B7	A193 B16	A193 B8M	A193 B8M
7	Ball	A182 F304	A182 F304	A182 F304	A182 F304
Suitable Medium		W.O.G.etc	W.O.G.etc	HNO3CH3OOH etc
Suitable Temperature		-29~425	-29~550	-29~180
