Products details:

Product name：API Stainless steel forged globe valve

Product Catalog：forged steel valve

OnLine Service:

Print this Page

Bookmark this

Skype Online

E-mail Us

PDF Download

【Prev Products】

【Next Products】

Product Details	Online Inquiry

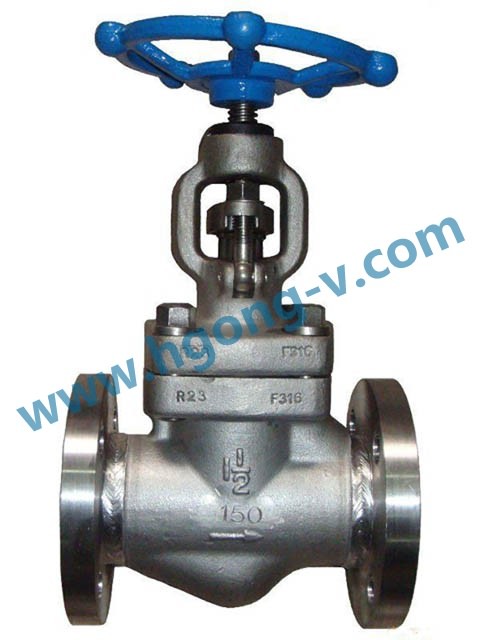

Stainless steel forge globe valve

Standard Material Specifications

NO.	Part Name	CS to ASTM	AS to ASTM	SS to ASTM
NO.	Part Name	Type A105	Type F22	Type F304(L)	Type F316(L)
1	Body	A105	A182 F22	A182 F304(L)	A182 F316(L)
2	Disc	A276 420	A276 304	A276 304(L)	A276 316(L)
3	Stem	A182 F6	A182 F304	A182 F304(L)	A182 F316(L)
4	Gasket	Corrugated SS + graphite		SS + PTFE
5	Bonnet	A105	A276 304	A276 304(L)	A276 316(L)
6	Bonnet Bolt	A193 B7	A193 B16	A193 B8	A193 B8M
7	Pin	A276 420		A276 304
8	Gland	A276 410		A182 F304(L)	A182 F316(L)
9	Gland Eyebolt	A193 B7	A193 B16	A193 B8	A193 B8M
10	Gland Flange	A216 WCB		A351 CF8
11	Gland Nut	A194 2H	A194 4	A194 8	A194 8M
12	Yoke Nut	A276 410
13	H.W.Nut	A194 2H	A194 4	A194 8	A194 8M
14	Nameplate	SS
15	Handwheel	A197
16	Stem Packing	Flexible Graphite		PTFE
Suitable Medium		W.O.G.etc	W.O.G.etc	HNO3CH3OOH etc
Sutiable Temperature		-29~425	-29~550	-29~180

Note: Other materials are available upon request.
